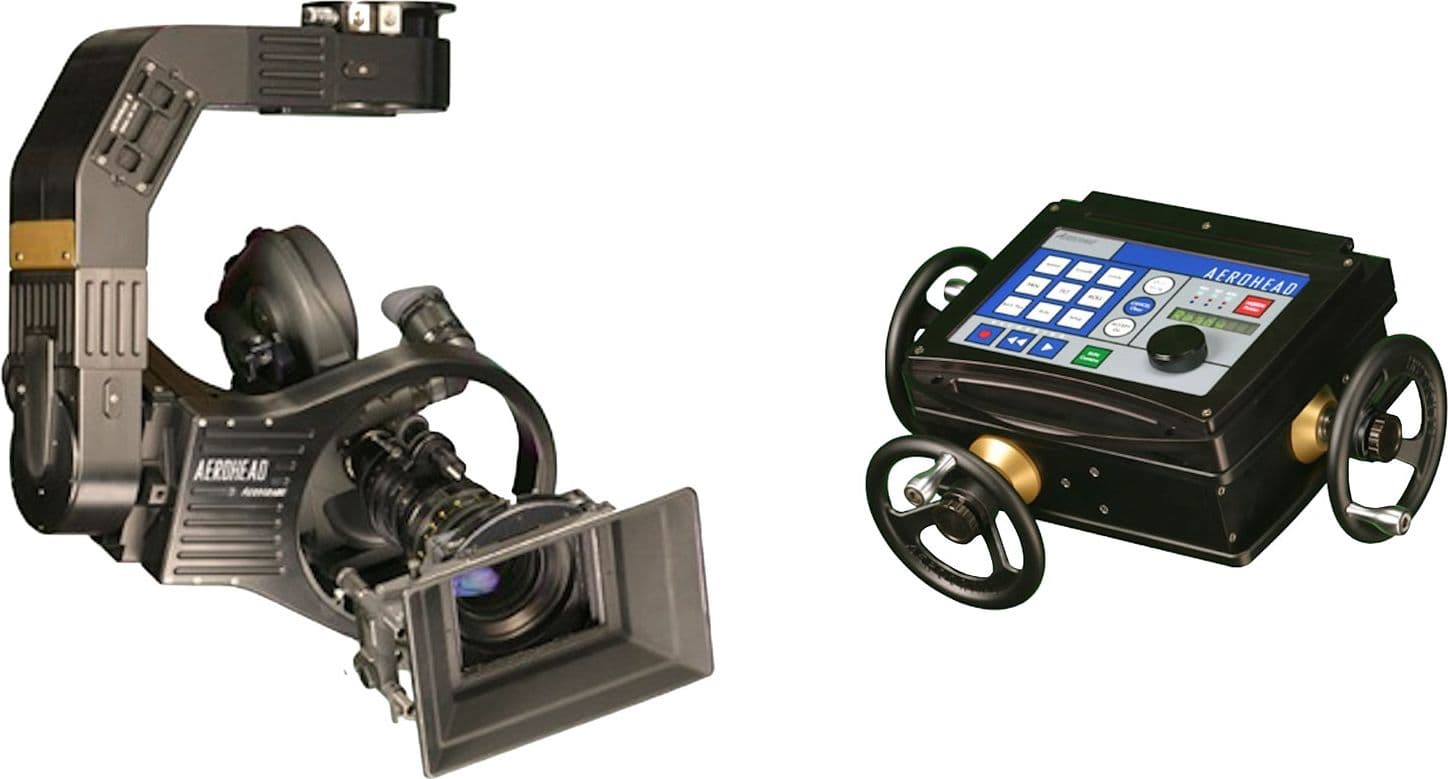

Aerohead
Quick Specs
- System Type: 2 or 3 axis remote head
- Head Weight: 57 lbs (2 axis) / 70 lbs (3 axis)
- Max Payload: 150 lbs (2 axis) / 100 lbs (3 axis)
- Pan Limit: 360°
- Tilt Limit: 360°
- Roll Limit: 360°
- Pan Speed: 128.5° per sec
- Tilt Speed: 128.5° per sec
- Roll Speed: 90° per sec
- Min. Dims: 27" T x 15.5" W (23.75" W 3 axis) x 15" D
- Power Requirements: 24V DC
- Controls: Handwheels (Included)

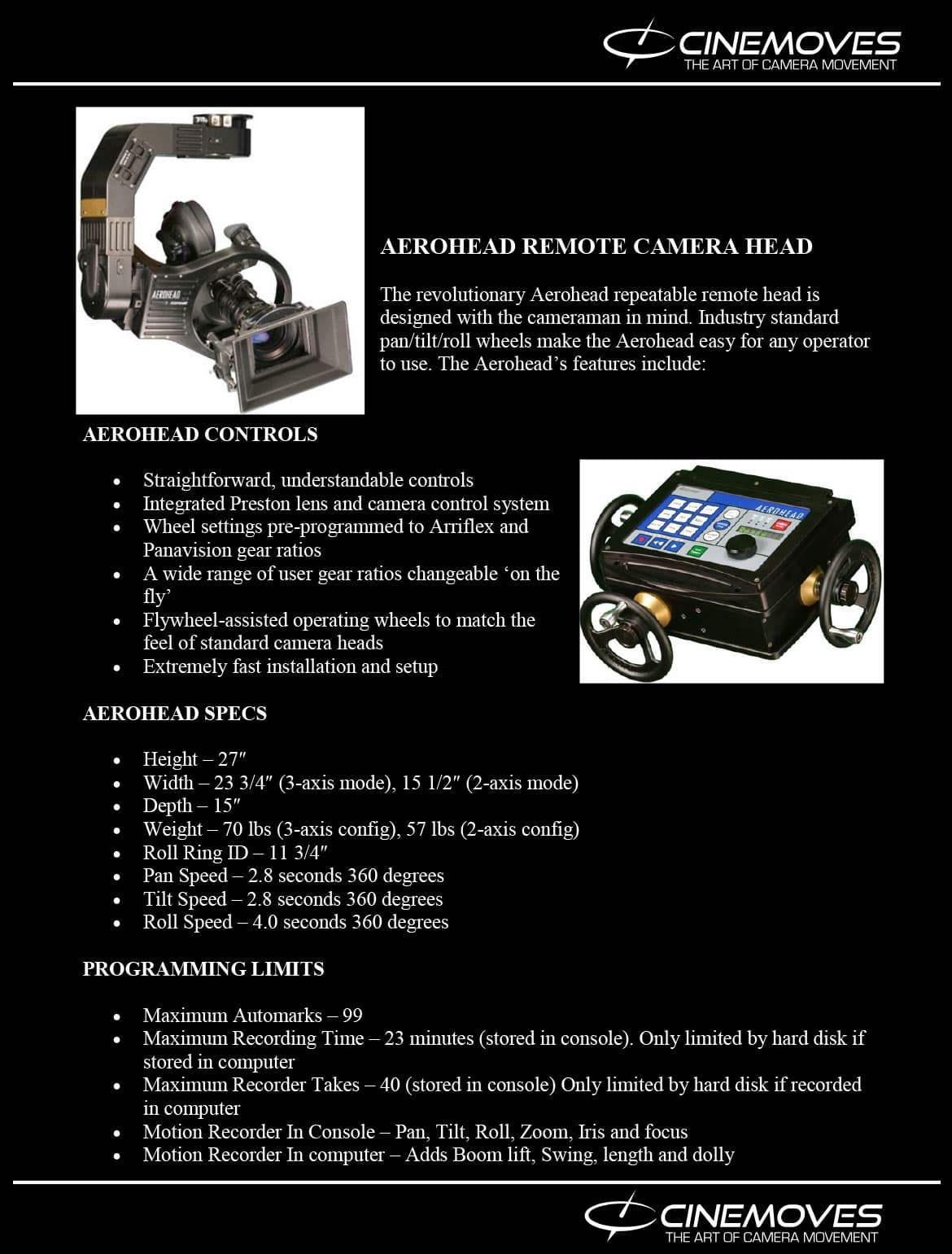

Specifications
Aerohead Controls
Straightforward, understandable controls
Integrated Preston lens and camera control system
Wheel settings pre-programmed to Arriflex and Panavision gear ratios
A wide range of user gear ratios changeable 'on the fly'
Flywheel-assisted operating wheels to match the feel of standard camera heads
Extremely fast installation and setup
Aerohead Specs
Height – 27"
Width – 23 3/4" (3-axis mode), 15 1/2" (2-axis mode)
Depth – 15"
Weight – 70 lbs (3-axis config), 57 lbs (2-axis config)
Roll Ring ID – 11 3/4"
Pan Speed – 2.8 seconds 360 degrees
Tilt Speed – 2.8 seconds 360 degrees
Roll Speed – 4.0 seconds 360 degrees
Programming Limits
Maximum Automarks – 99
Maximum Recording Time – 23 minutes (stored in console). Only limited by hard disk if stored in computer
Maximum Recorder Takes – 40 (stored in console) Only limited by hard disk if recorded in computer
Motion Recorder In Console – Pan, Tilt, Roll, Zoom, Iris and focus
Motion Recorder In computer – Adds Boom lift, Swing, length and dolly
