Apex Flight Head
Quick Specs
- Stabilization: angular, throughout 300mm focal range (film)
- Pan axis: travels through 360°
- Roll axis: travels through ± 42°
- Tilt Axis: travels through + 60°; 240°
- Payload capacity: up to 30kg
- Weight: 32kg
- Speed: 120°/sec
- Temperature range: – 30°C up to + 40 °C
- Power Requirements: 27- 36 VDC
- Standby: 1.2 Amps
- Din. Max.: 15 Amps
Specifications

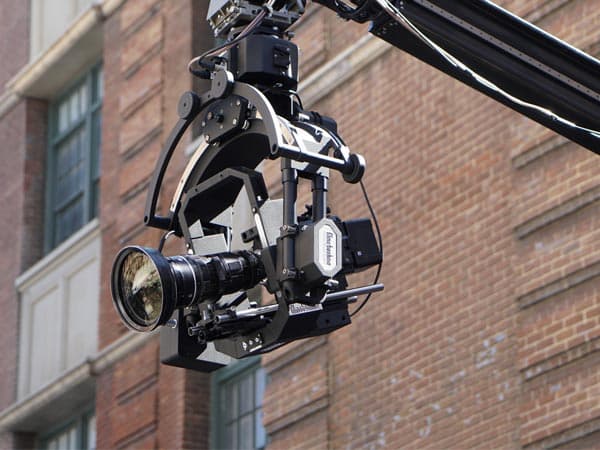

The three axis Flight Head Apex is one of the most compact and highly versatile stabilized camera remote heads on the market. It eliminates camera shake and vibration during fast or rough moves. Works on all types of camera crane arms, dollies, tracking vehicles, cablecams, etc.
- •Quick release camera plate
- •Easy balance of camera packages
- •Mitchell mount
- •Compact design
- •Underslung & Overslung
- •Auto horizon
- •Robust design
- •Responsive control
- •Wired or Wireless
The console features:
- •angular position indication
- •recorded moves
- •drift manual adjustment / drift automatic compensation
- •roll shift
- •user presets
- •damping / speed
- •hold position
- •limits
