Supertechno 15'

Quick Specs

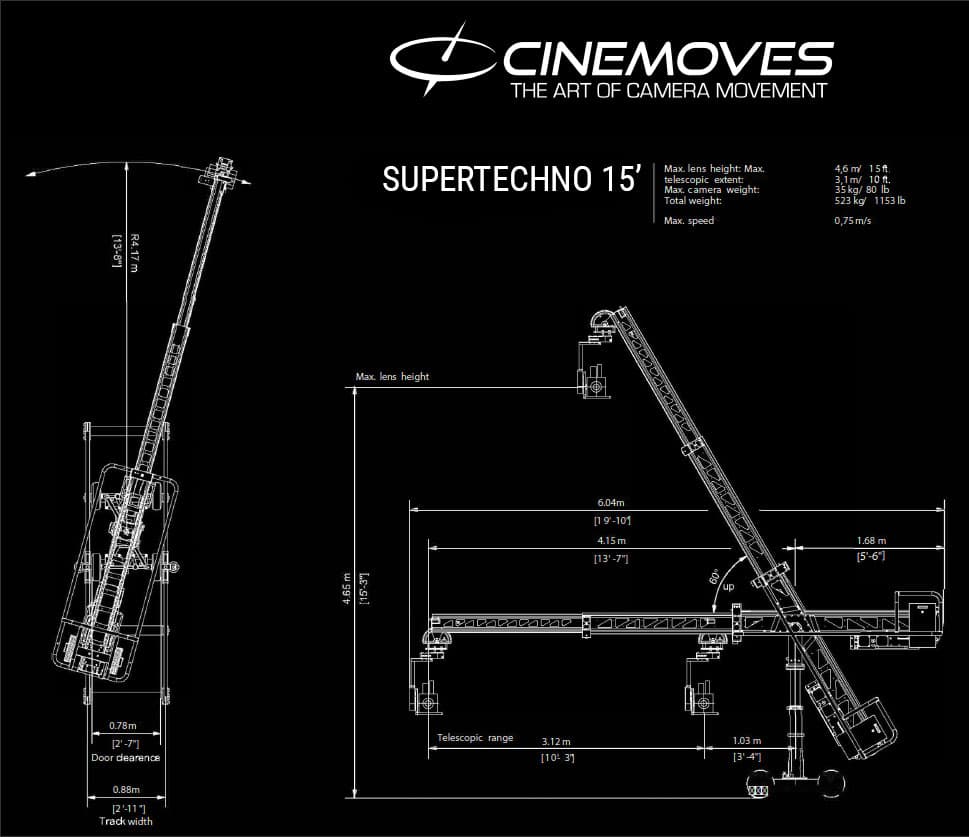

• Ext. Reach From Post: 13'7"
• Retracted Reach From Post: 3'4"
• Rear Length From Post: 5'6"
• Max Lens Height Underslung: 15'
• Max Lens Height Overslung: 17'

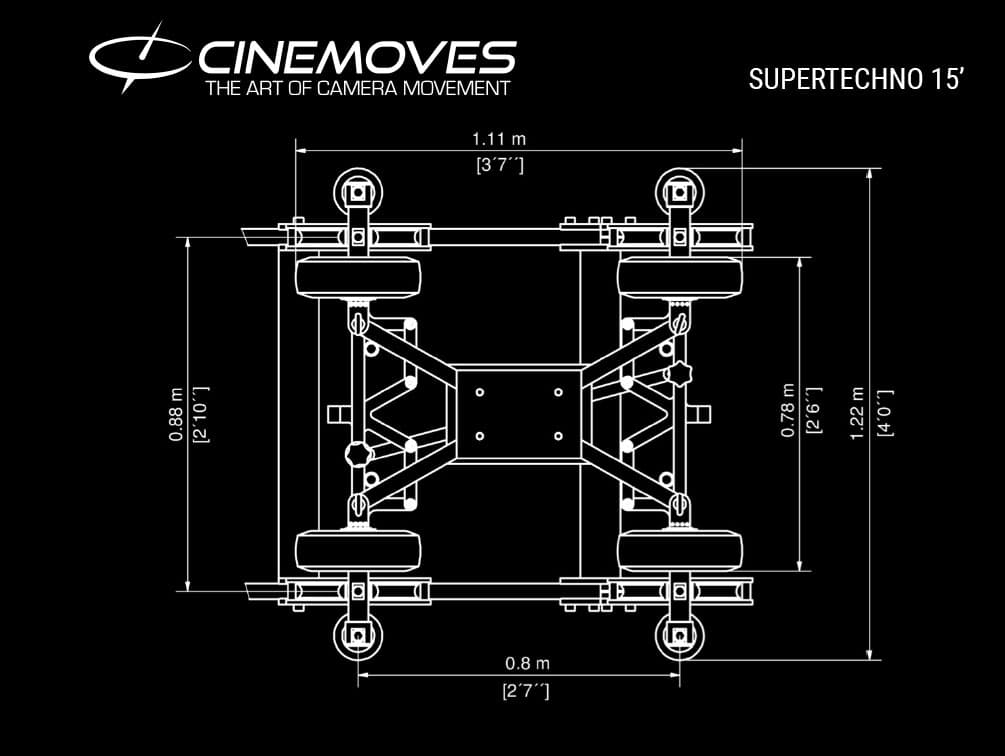

• Base Width: 2'8"
• Minimum Clearance: 5'6"

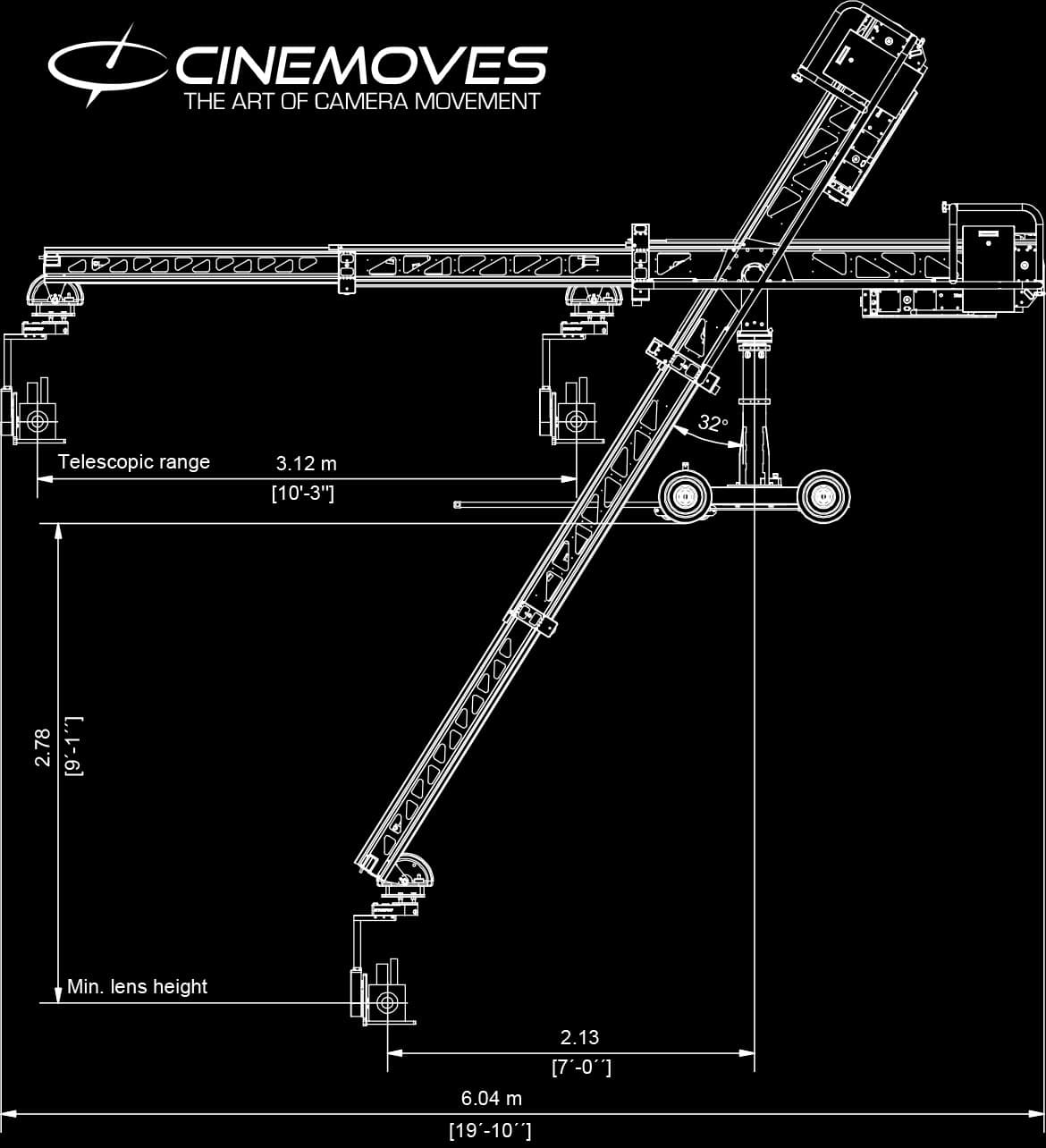

• Telescopic Range: 10'3"
• Max Nose Load / Underslung: 186 lbs
• Max Nose Load / Overslung: N/A
• Max Speed: 6'6" per sec
• Total Weight Incl. Payload +Counterweights: 1,250 lbs
• Empty Crane Weight: 650 lbs
• Empty Arm Weight: 300 lbs
