Scorpio 45'

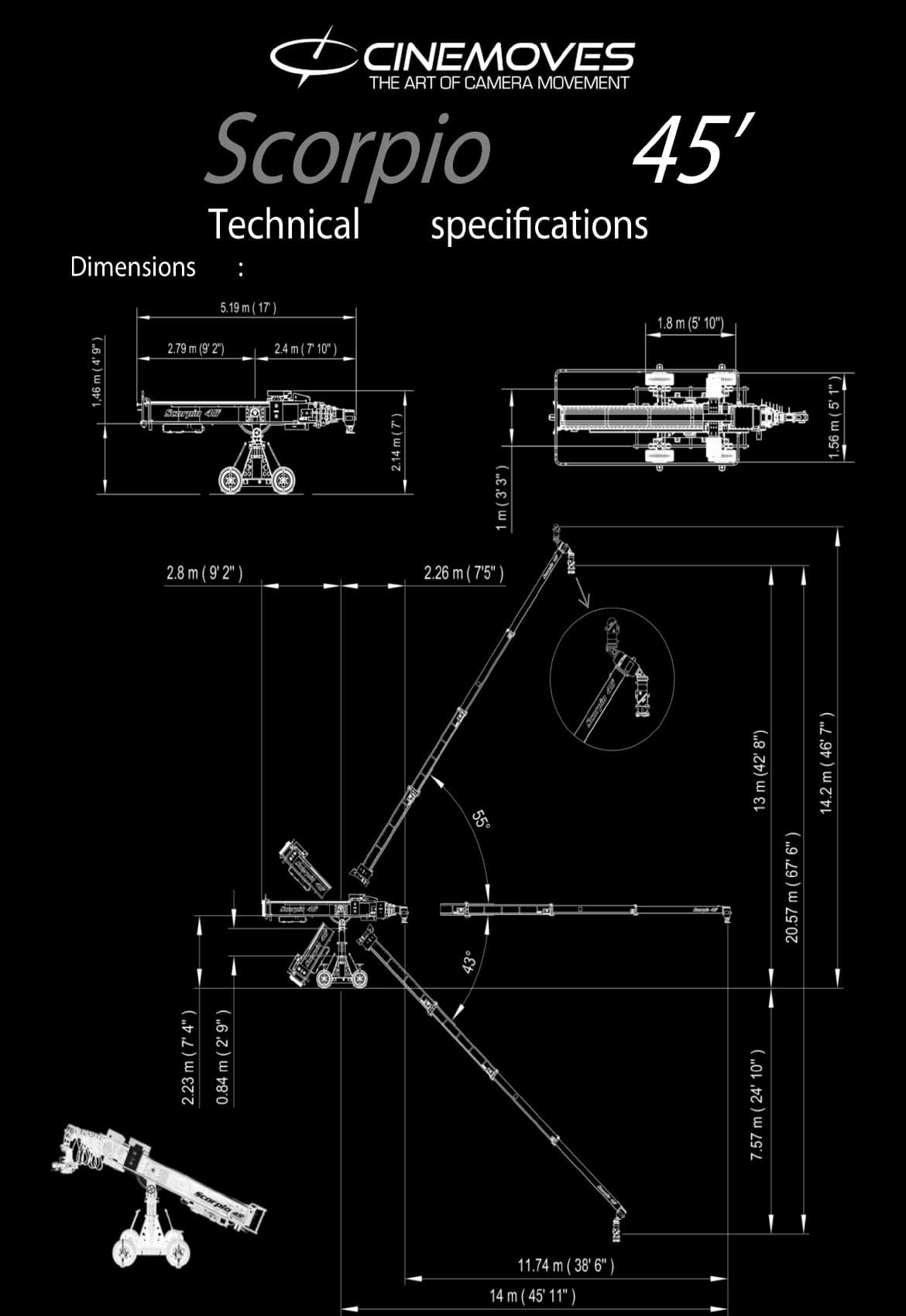

Quick Specs

• Ext. Reach From Post: 45'11"
• Retracted Reach From Post: 7'10"
• Rear Length From Post: 9'2"
• Max Lens Height Underslung: 42'8"
• Max Lens Height Overslung: 46'7"
• Base Width: 5'1"
• Minimum Clearance: 7'
• Telescopic Range: 37'4"

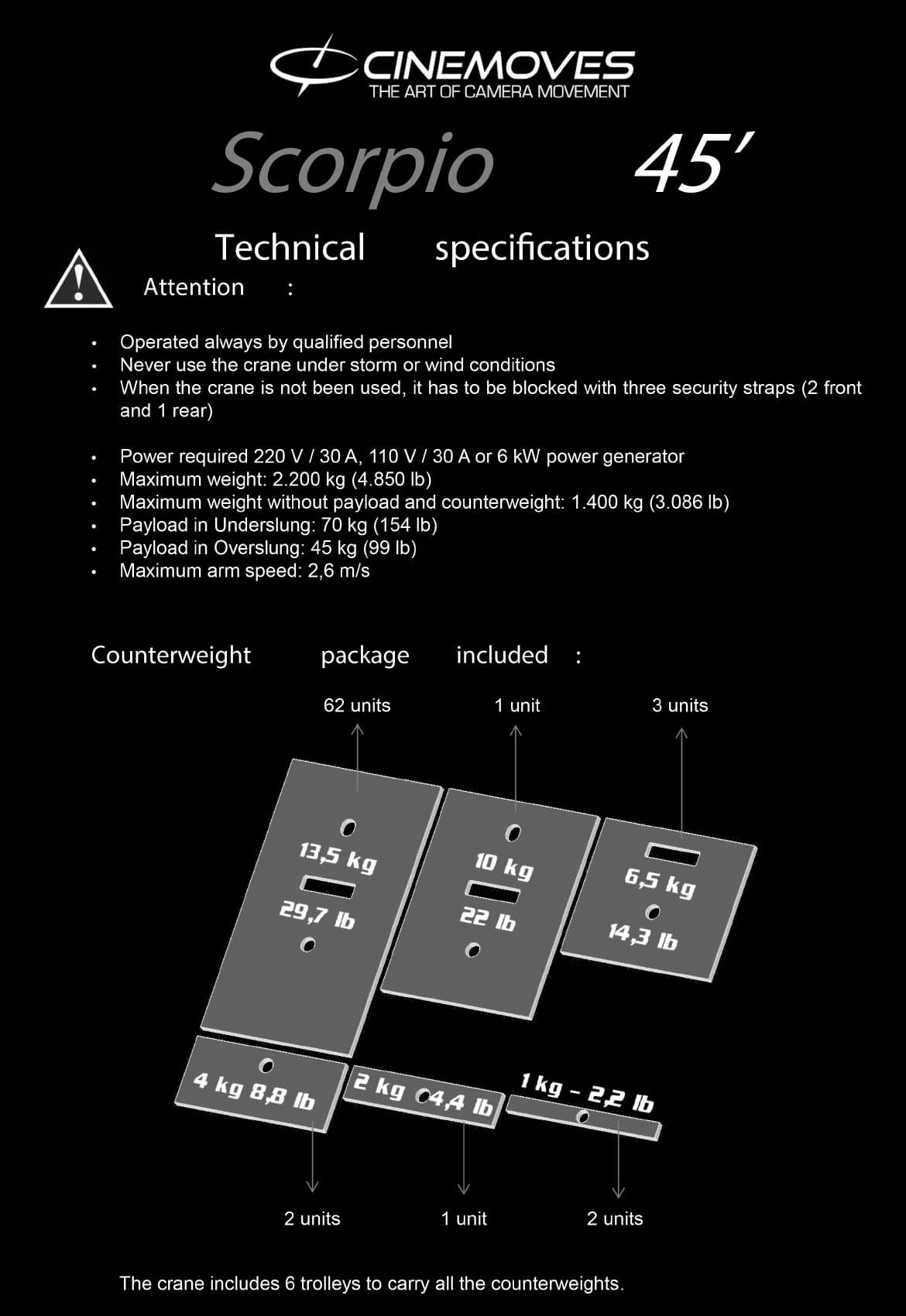

• Max Nose Load / Underslung: 154 lbs
• Max Nose Load / Overslung: 99 lbs
• Max Speed: 8'5" per sec
• Total Weight Incl. Payload & Counterweights: 5,452 lbs
• Empty Crane Weight: 3,277 lbs
• Empty Arm Weight: 1,523 lbs
