Scorpio 78'

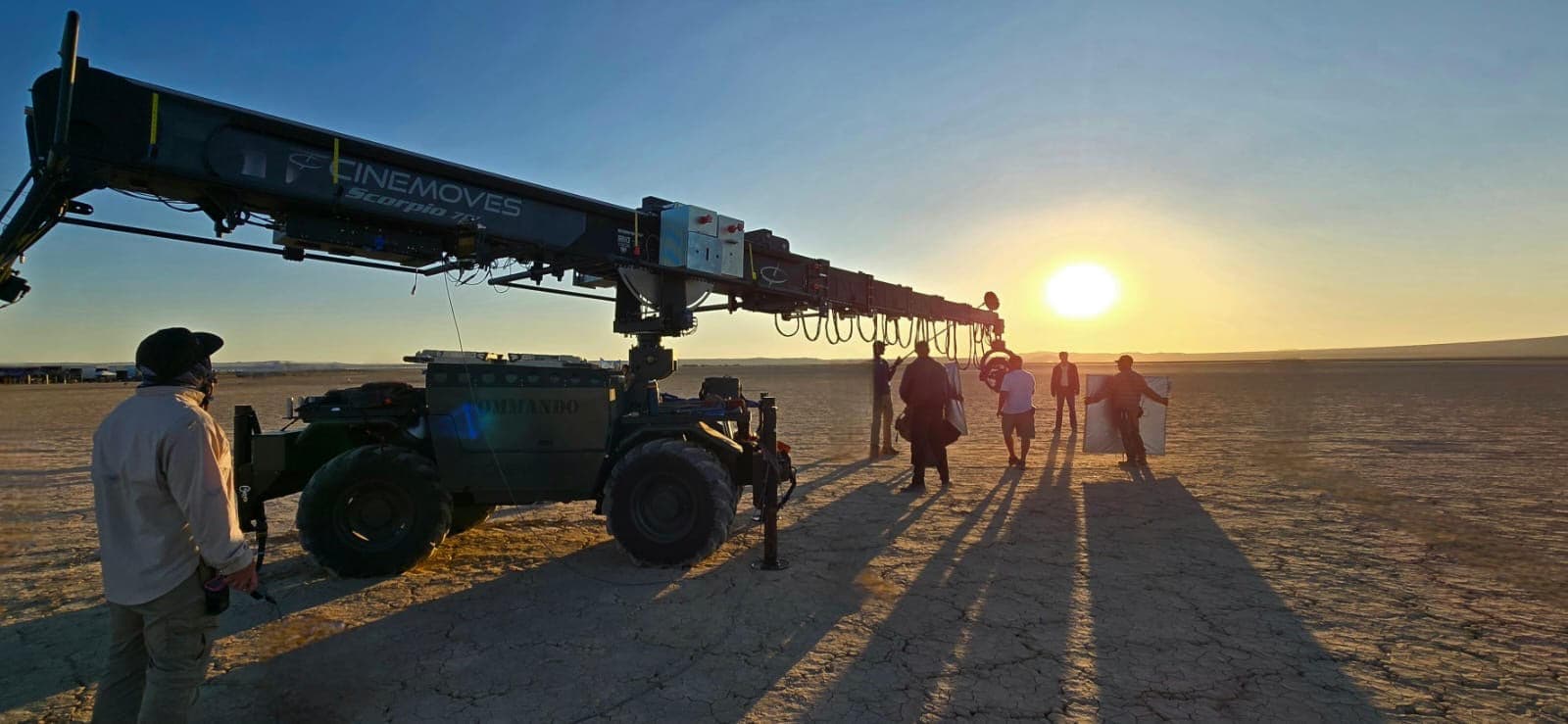

Scorpio 78' crane

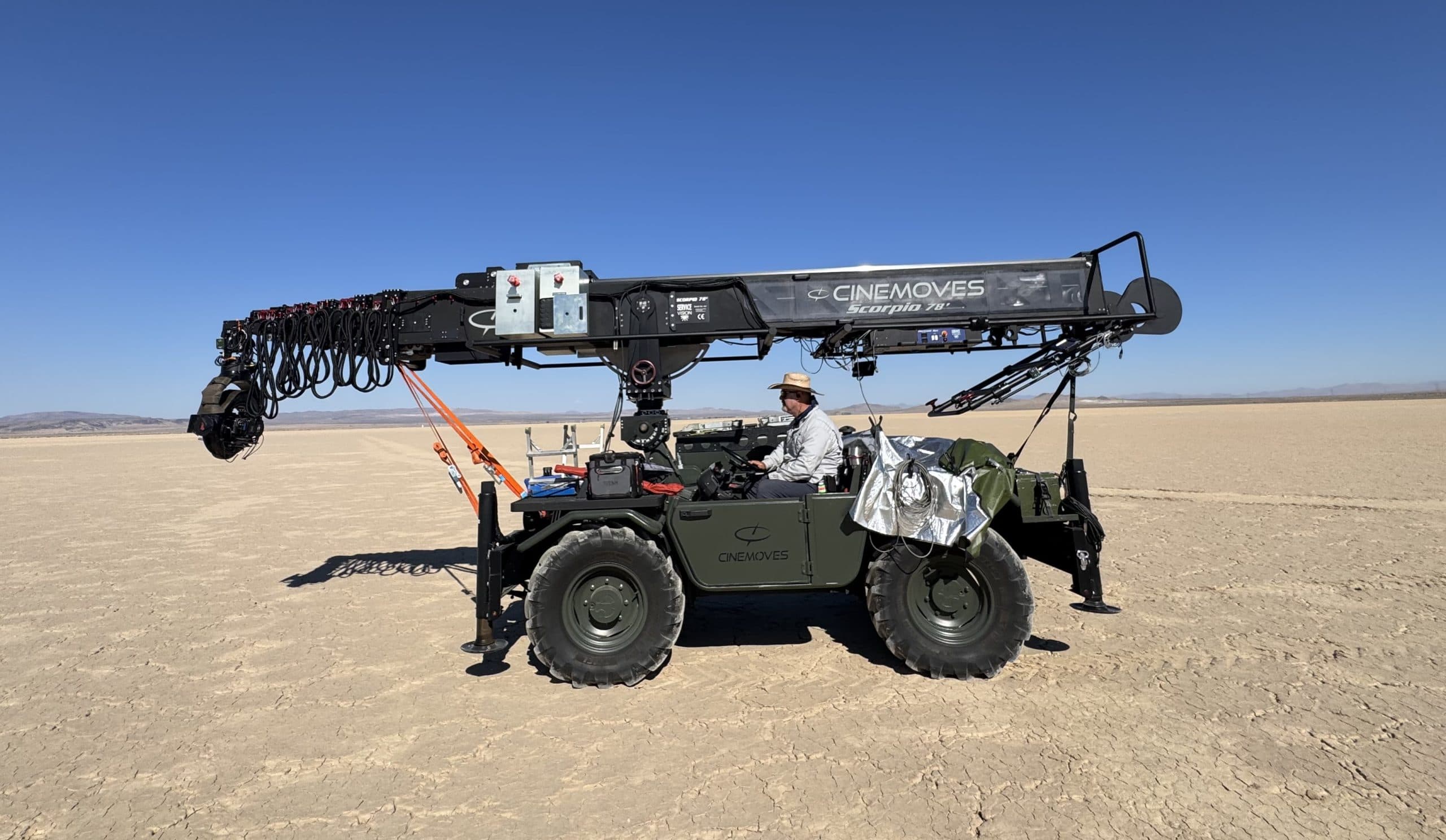

Scorpio 78' on set

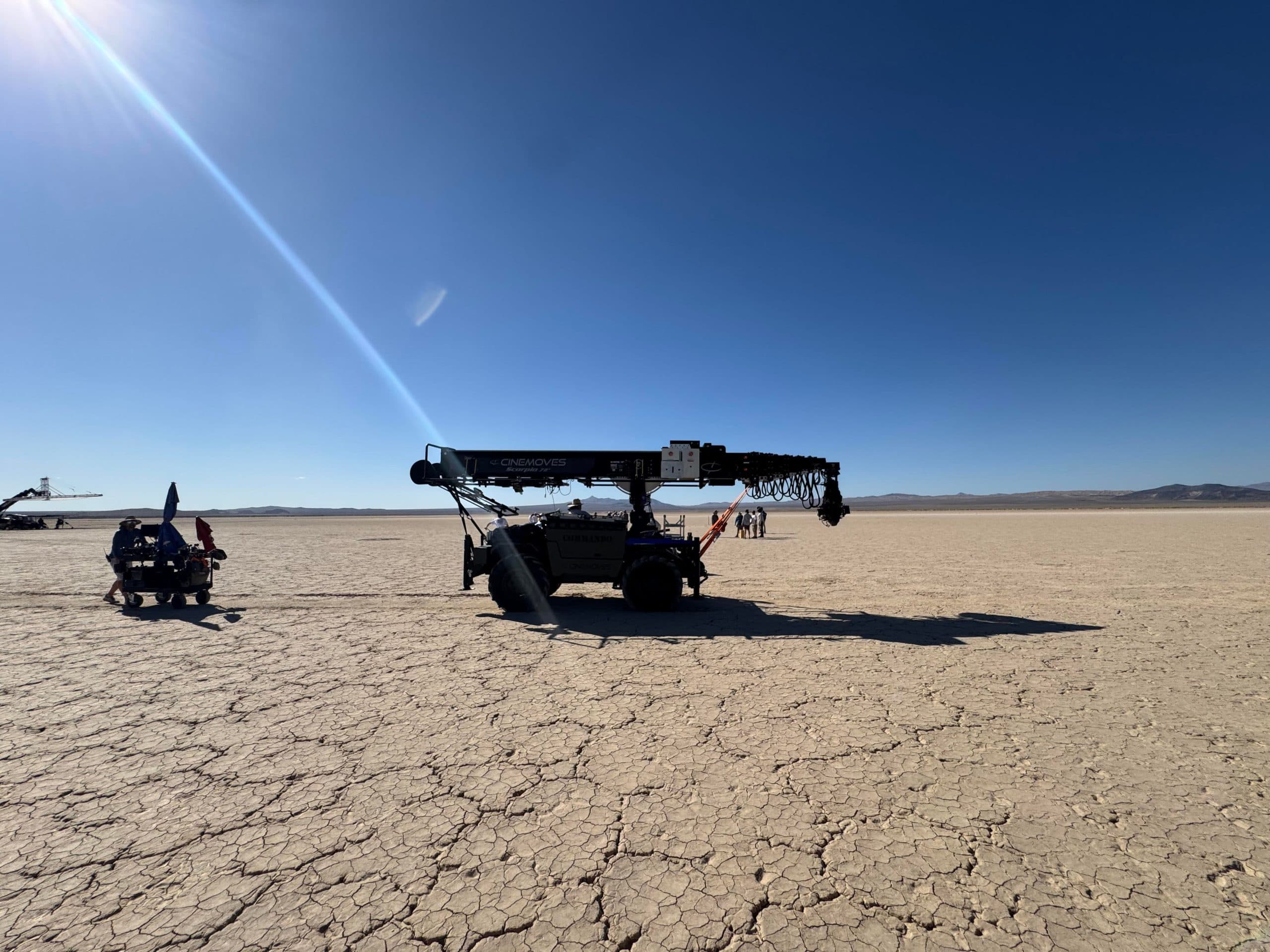

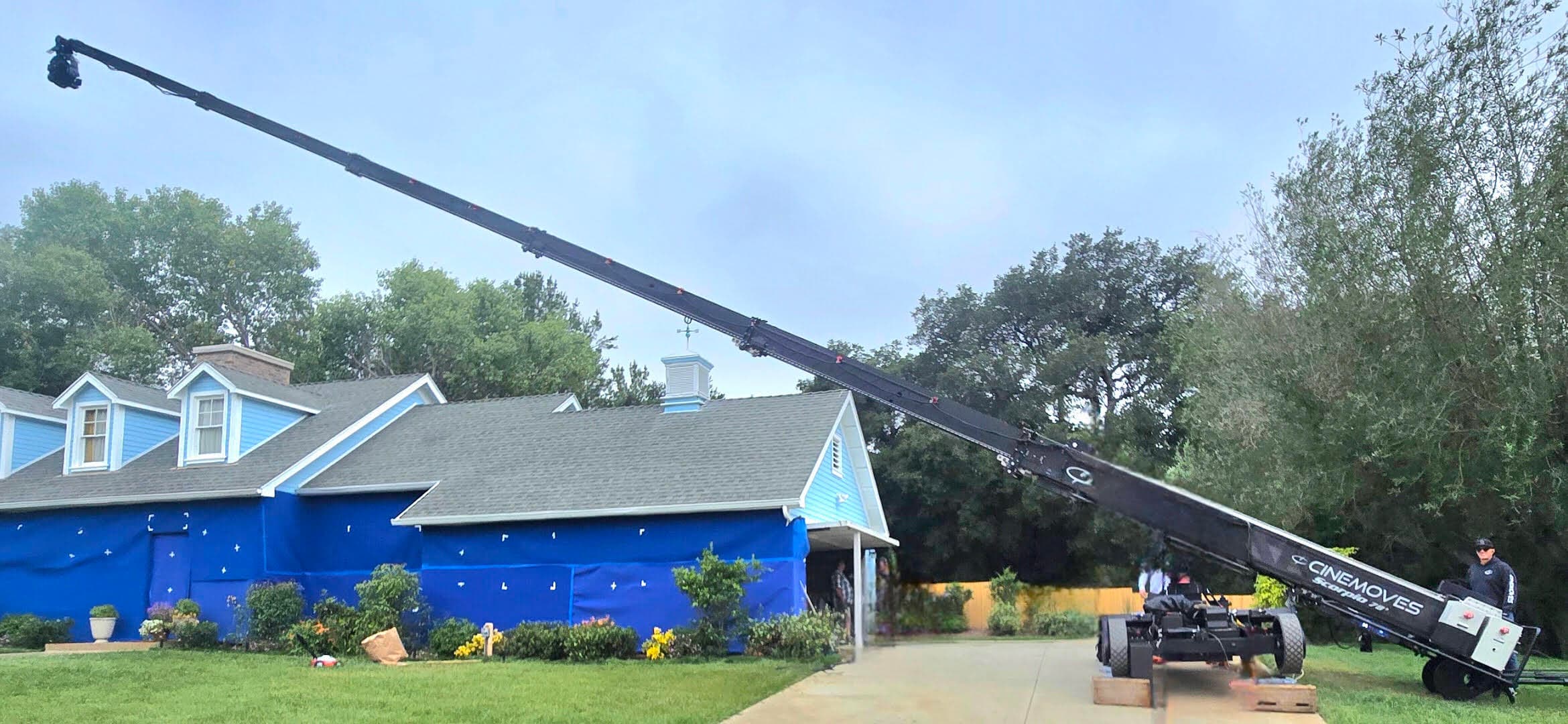

Scorpio 78' extended

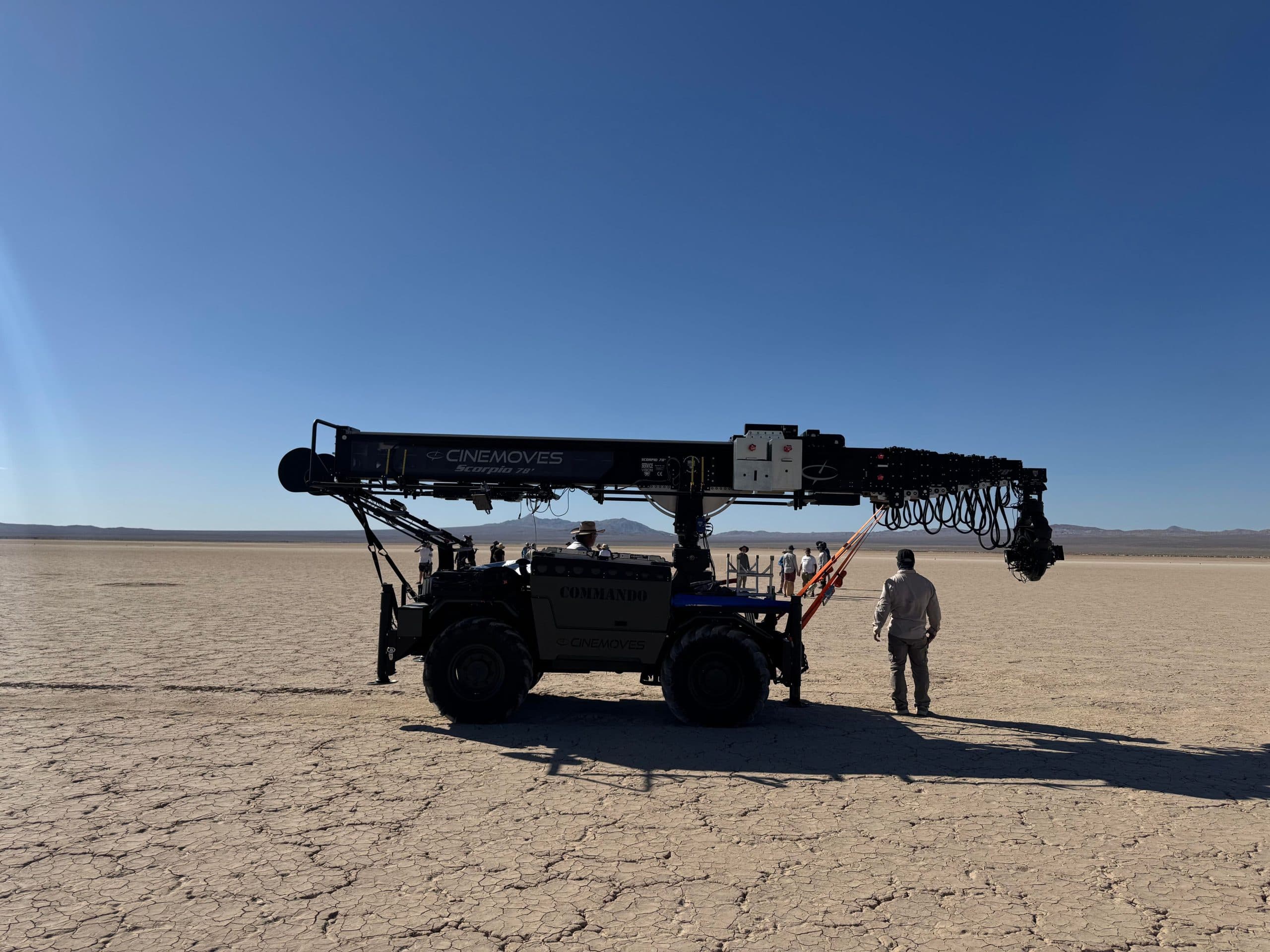

Scorpio 78' on location

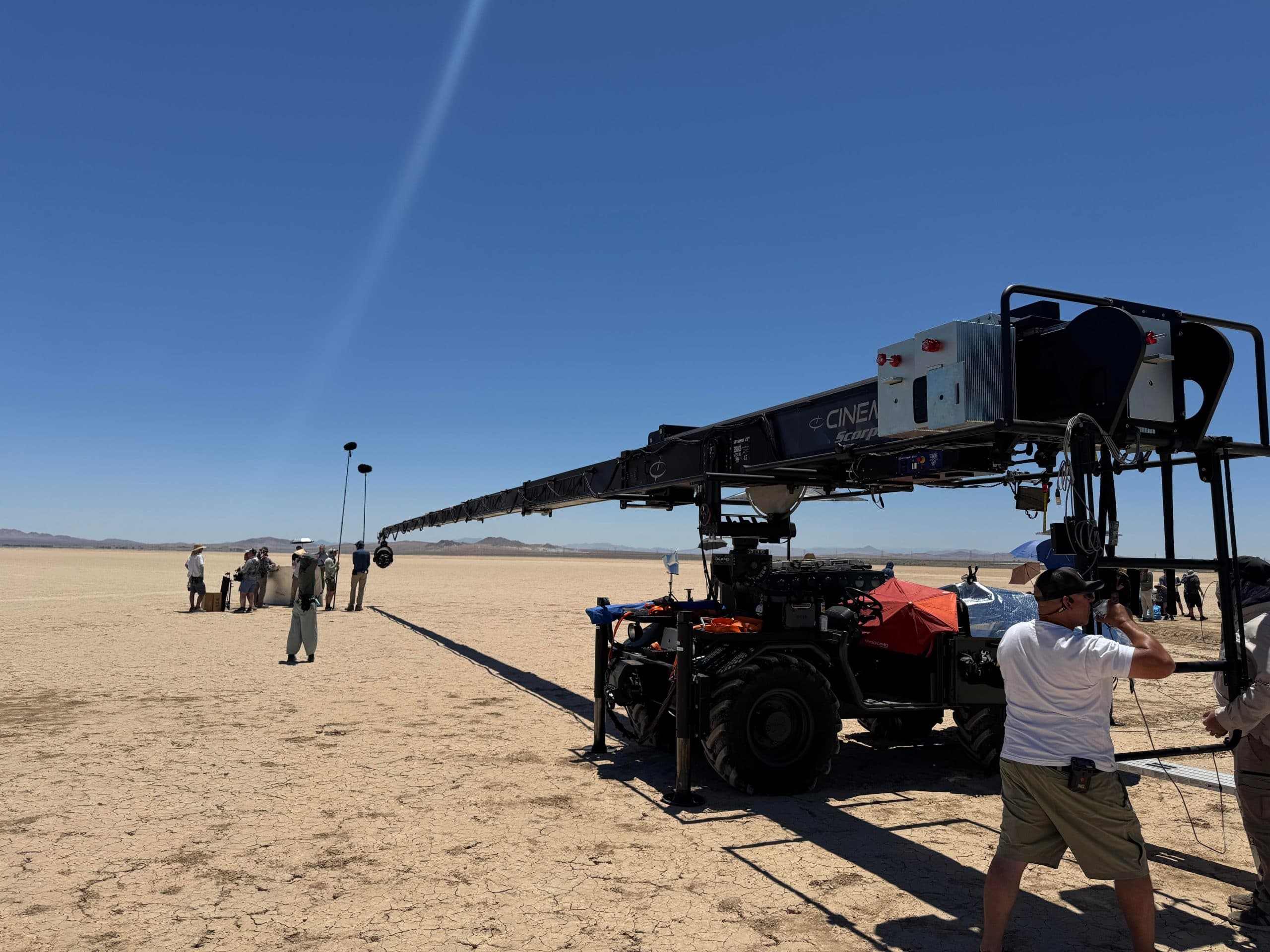

Scorpio 78' rigging

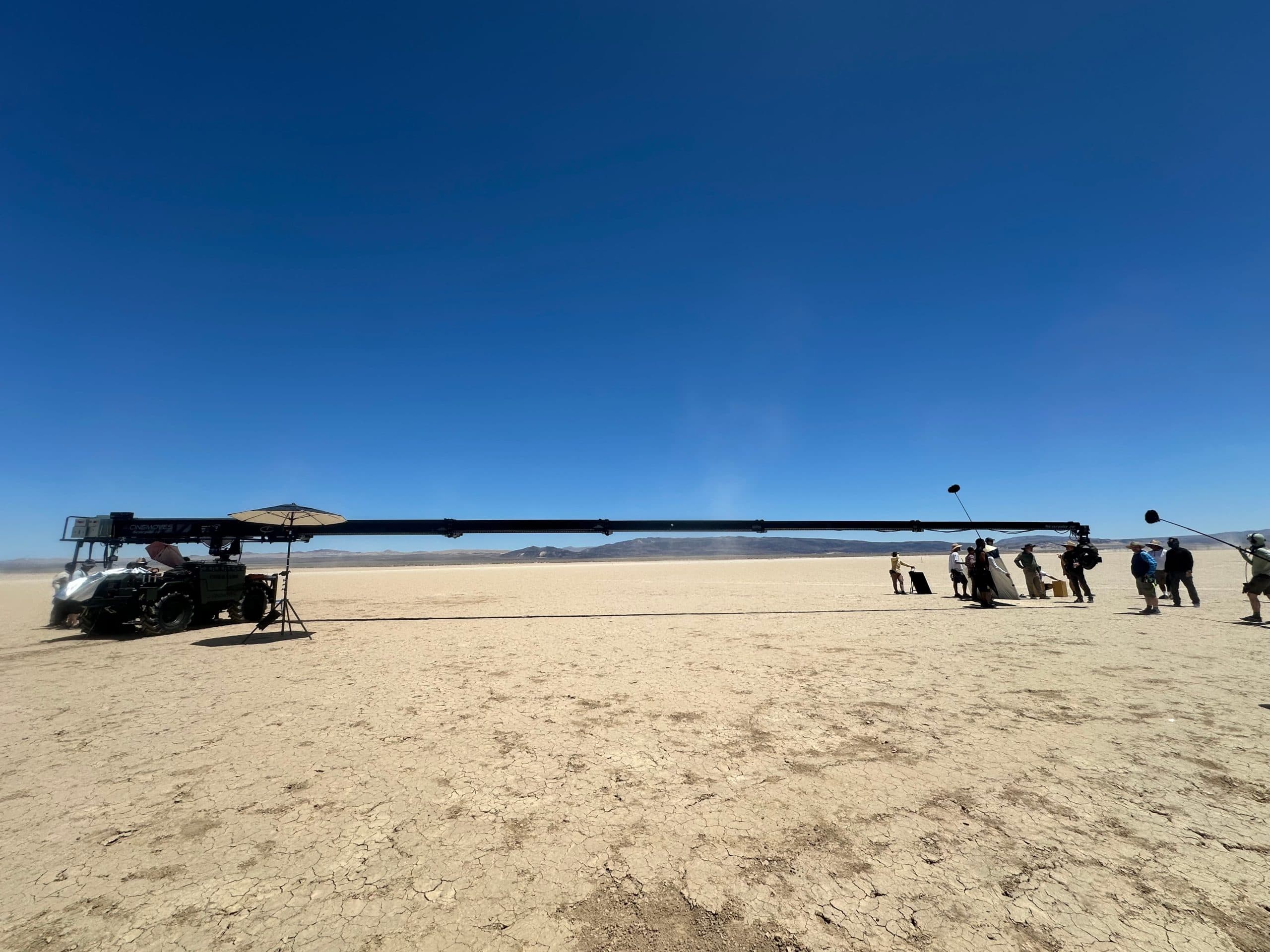

Scorpio 78' production

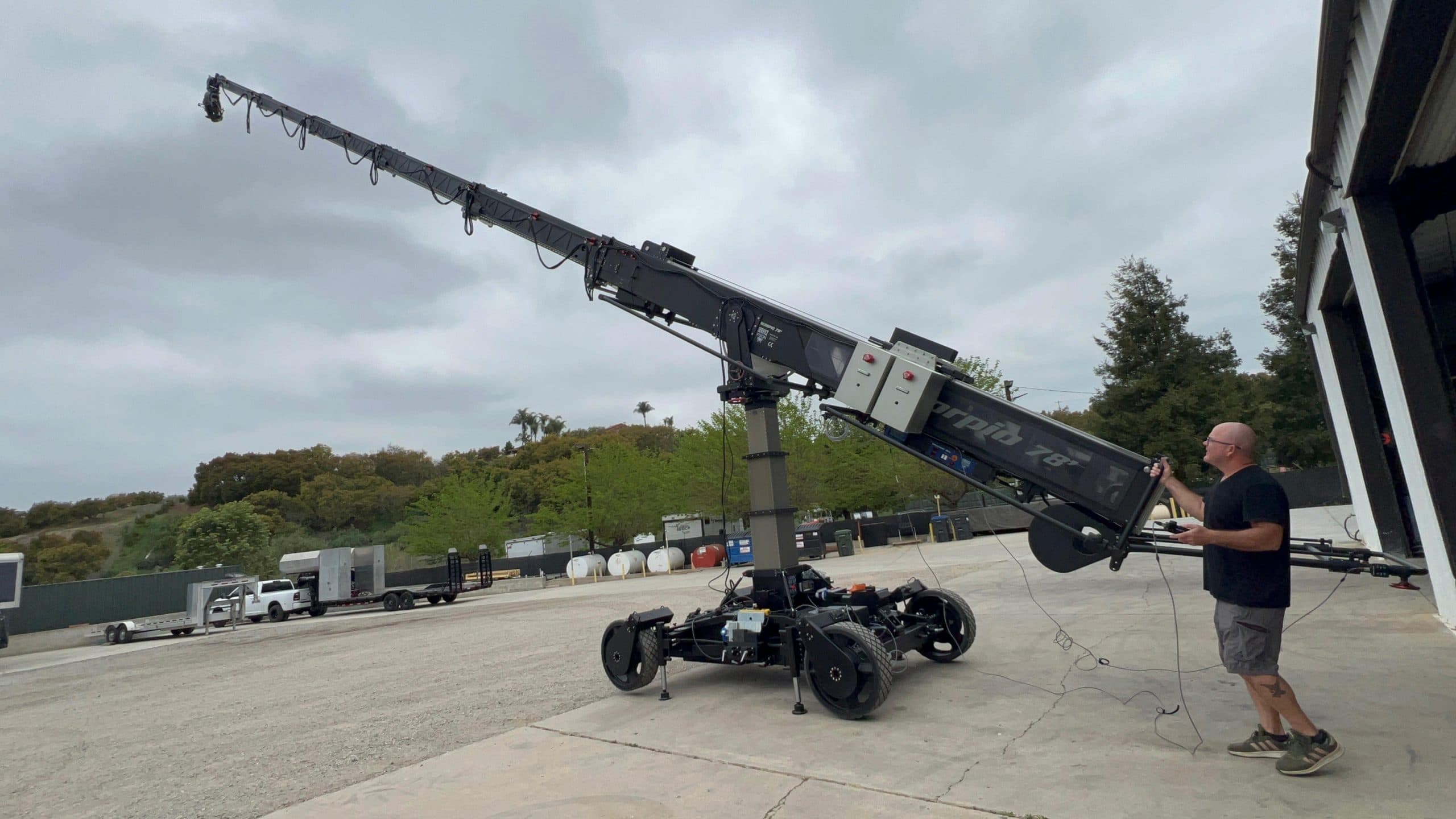

Scorpio 78' wide shot

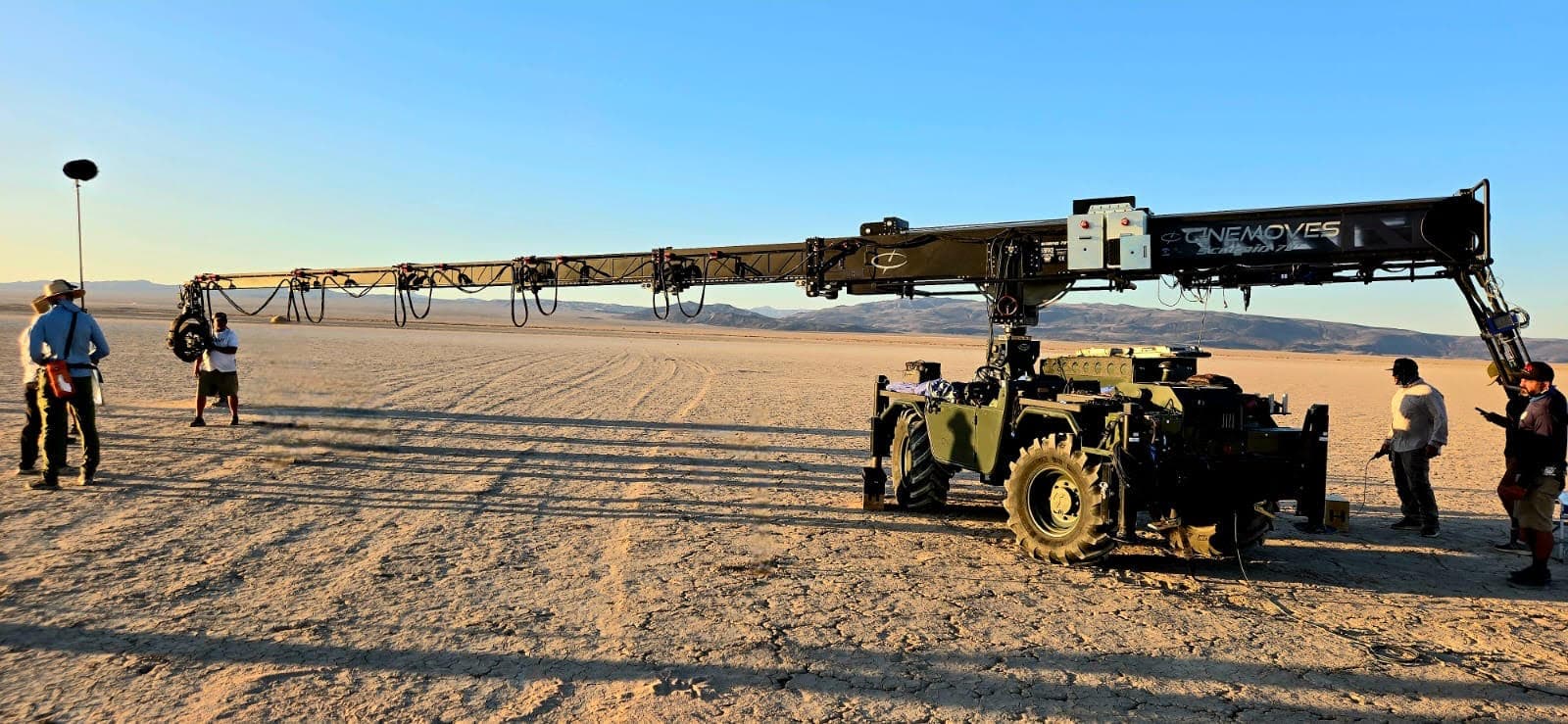

Scorpio 78' detail

Quick Specs

Ext Reach From Post: 78'
Retracted Reach From Post: 11'1"
Rear Length From Post: 13'6"
Max Lens Height Underslung: 70'6"
Max Lens Height Overslung: 74'6"
Base Width: 6'11"
Minimum Clearance: 7'10"
Telescopic Range: 67'3"
Max Nose Load Underslung: 132 lbs / 200 lbs 64' mode
Max Nose Load Overslung: 132 lbs
Max Speed: 8'5" per sec
Total Weight Incl. Payload and Counterweights: 12,300 lbs
Empty Crane Weight: 7,900 lbs
Empty Arm Weight: 4,114 lbs

Specifications

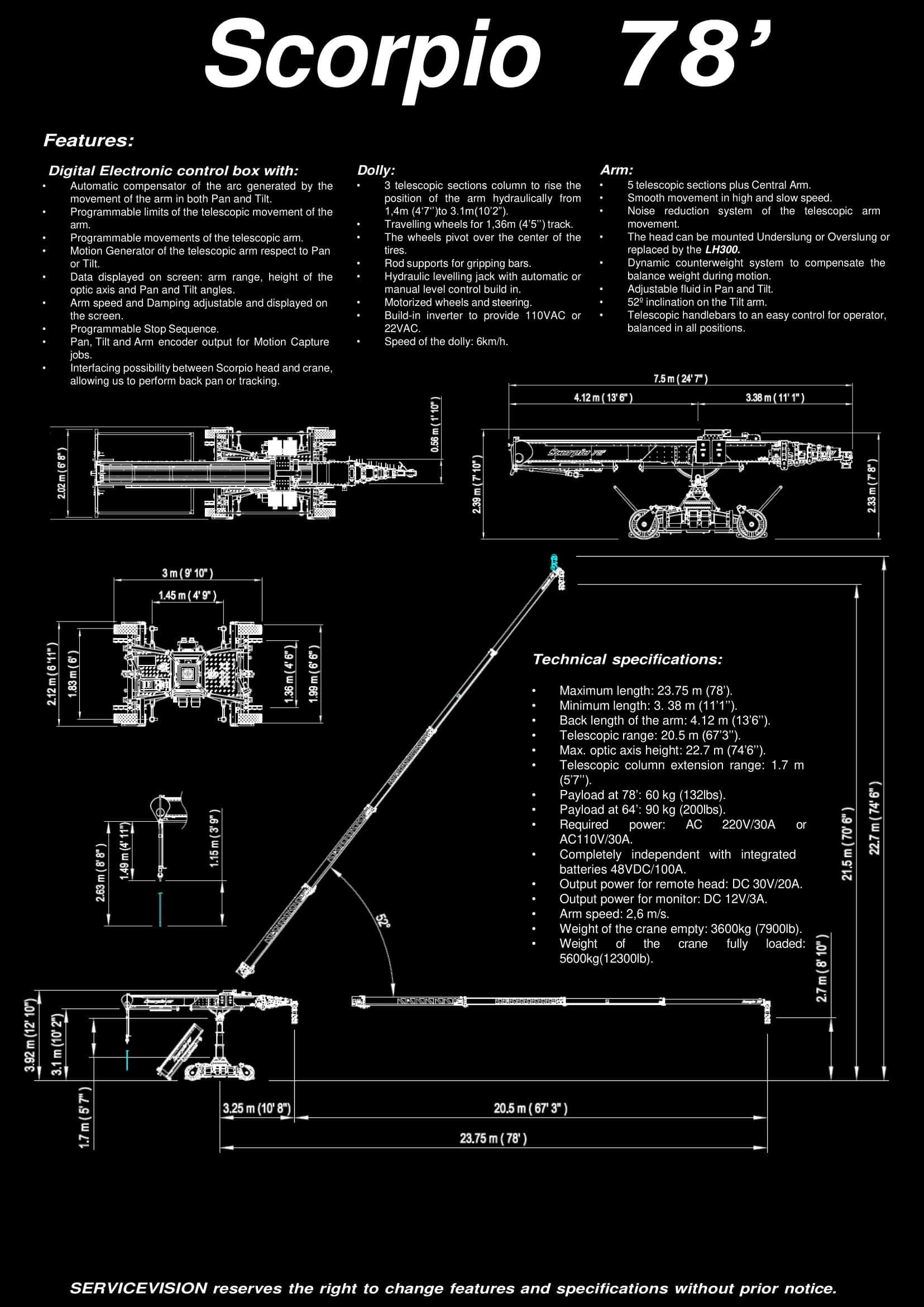

Scorpio 78' specifications
