MovieBird 35'-45'

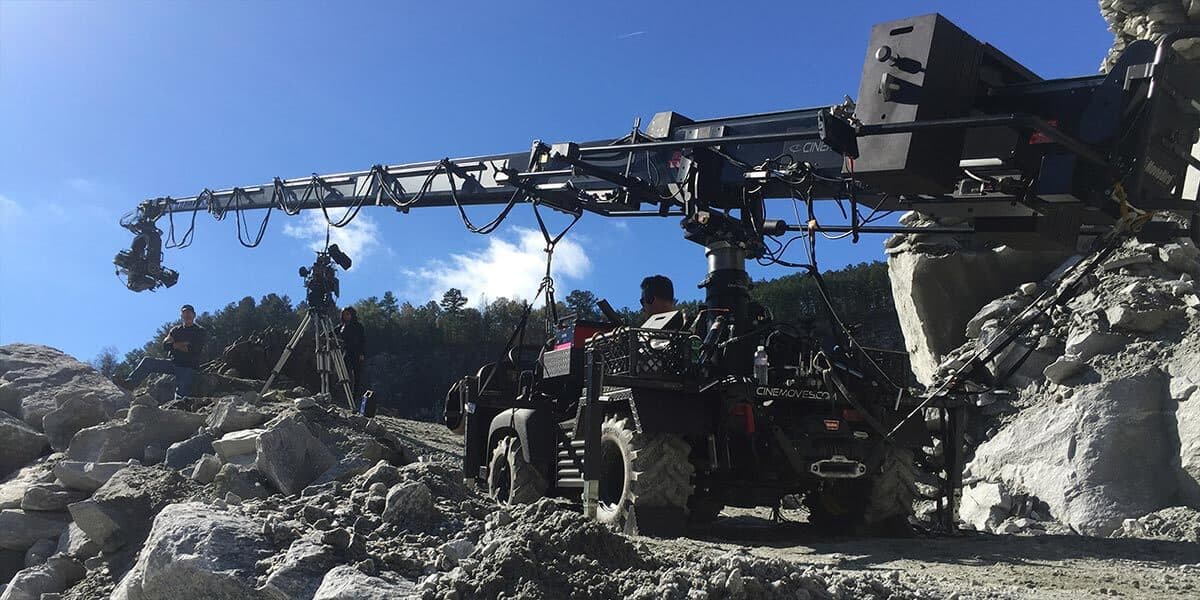

MovieBird 35'-45' on rocky terrain

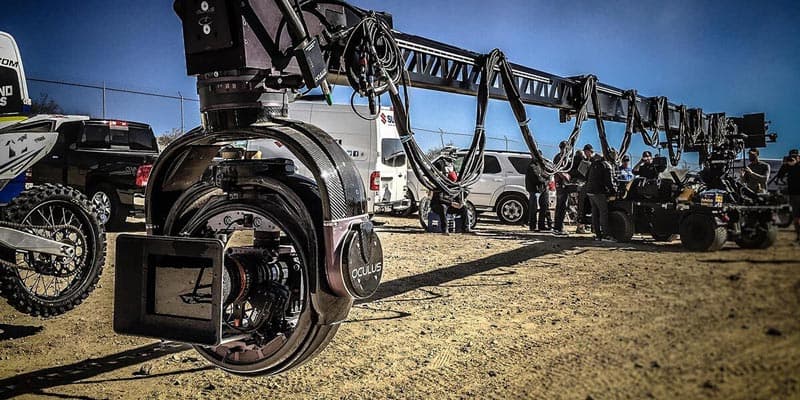

MovieBird 35'-45' on location

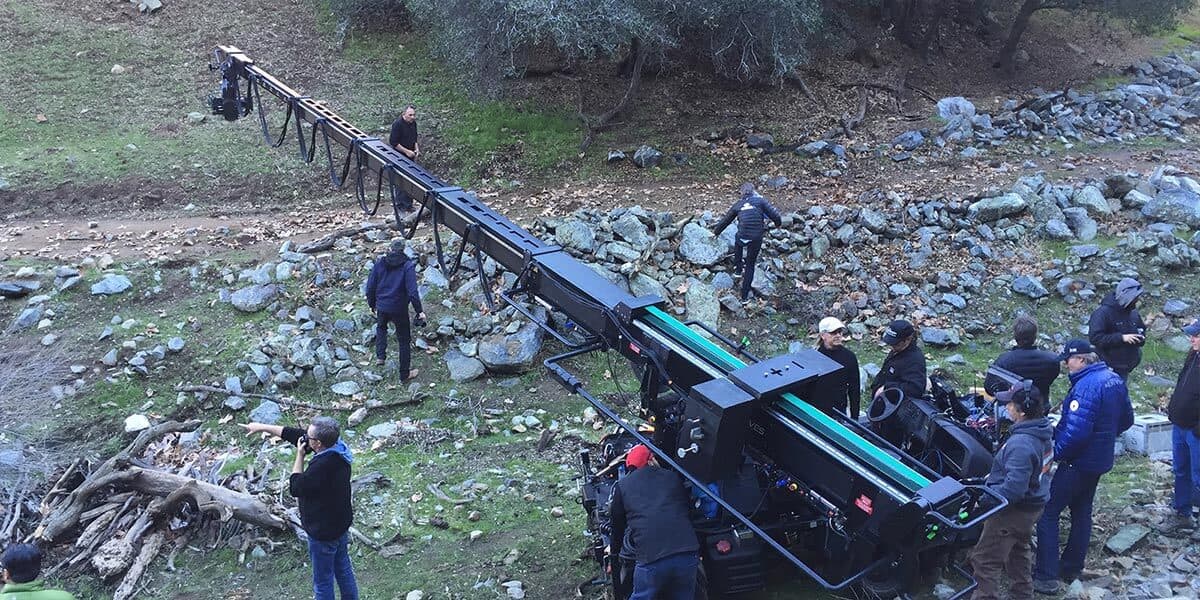

MovieBird 35'-45' production

Quick Specs

  • Ext. Reach From Post: 35' – 45'
  • Retracted Reach From Post: 8'2"
  • Rear Length From Post: 7'9"
  • Max Lens Height Underslung: 36'4"
  • Max Lens Height Overslung: 39'7"
  • Base Width: 3'8" - 5'
  • Minimum Clearance: 6'6"
  • Telescopic Range: 36'5"
  • Max Nose Load / Underslung: 118lbs / 45'
  • Max Nose Load / Overslung: 80 lbs
  • Max Speed: 6'6" per sec
  • Total Weight Incl. Payload & Counterweights: 4,210 lbs
  • Empty Crane Weight: 1,853 lbs
  • Empty Arm Weight: 1,241 lbs
Get a Quote

Specifications

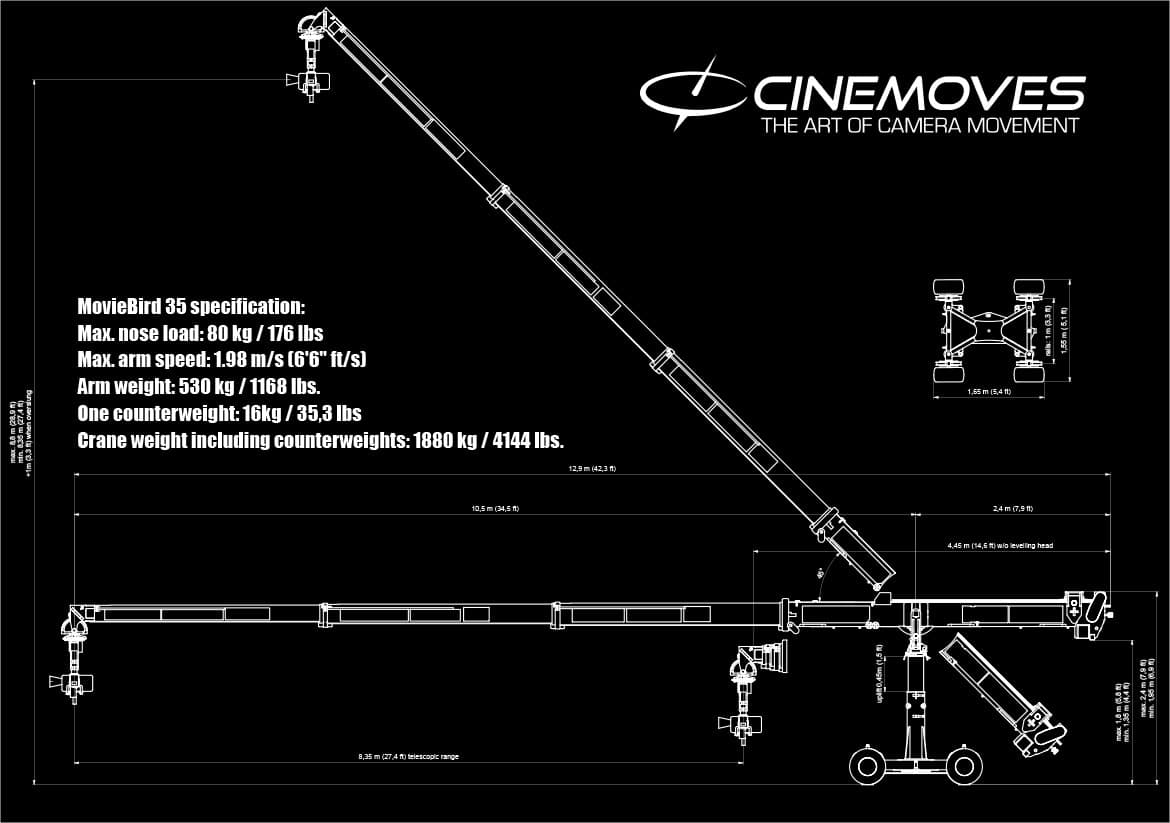

MovieBird 35'-45' specifications 1

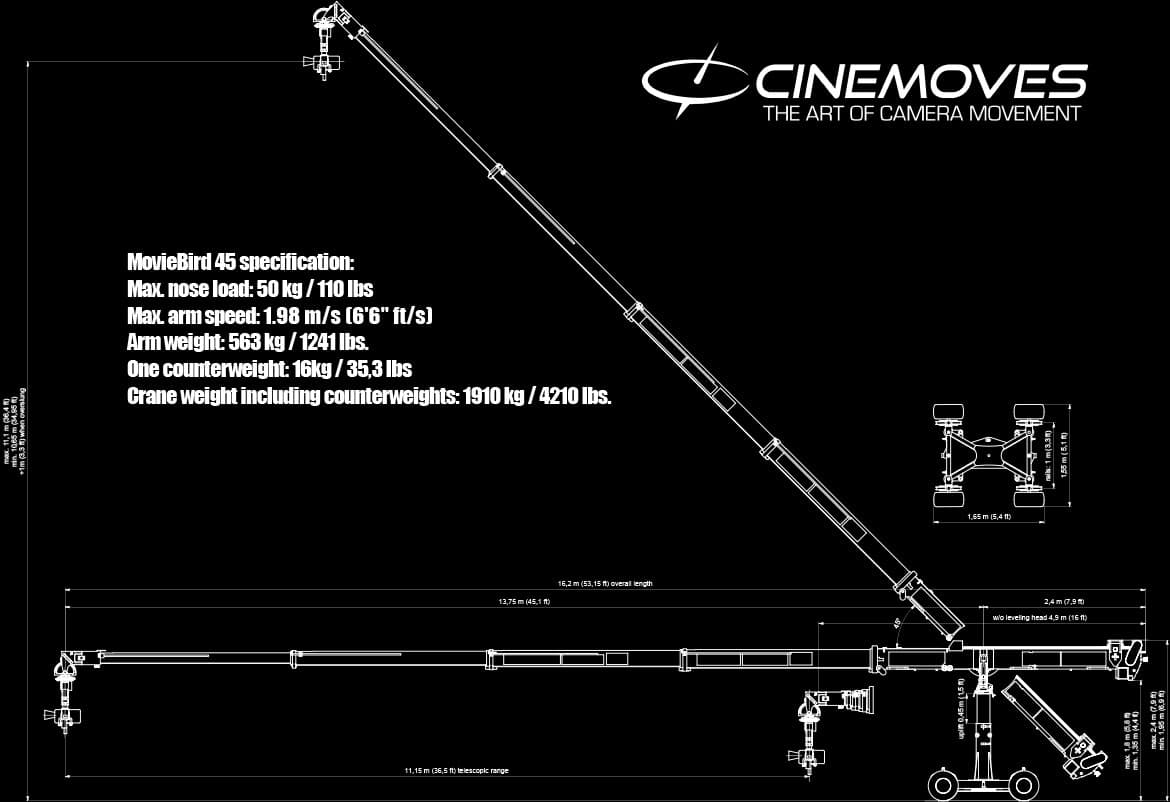

MovieBird 35'-45' specifications 2
