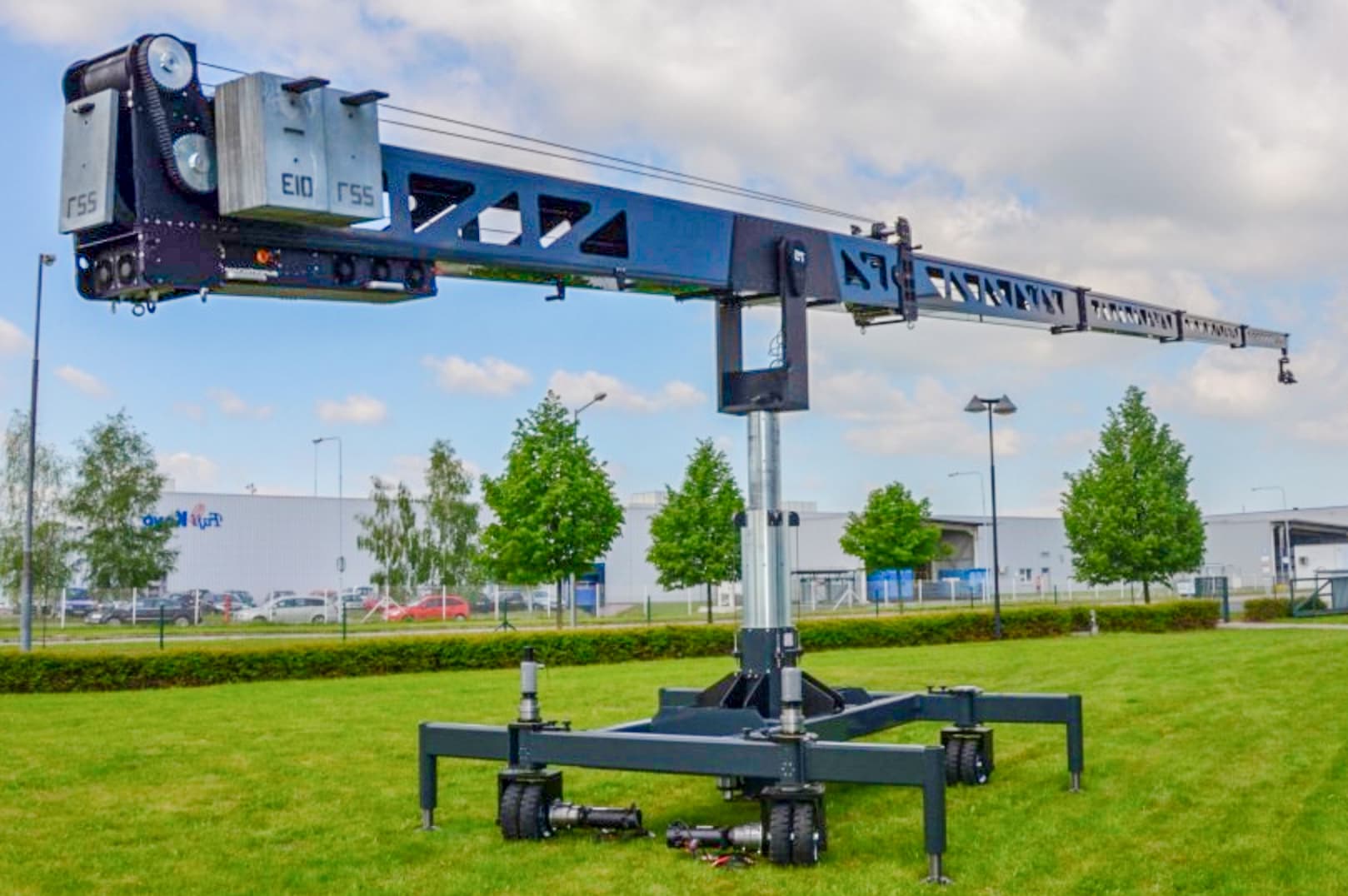

Supertechno 75'

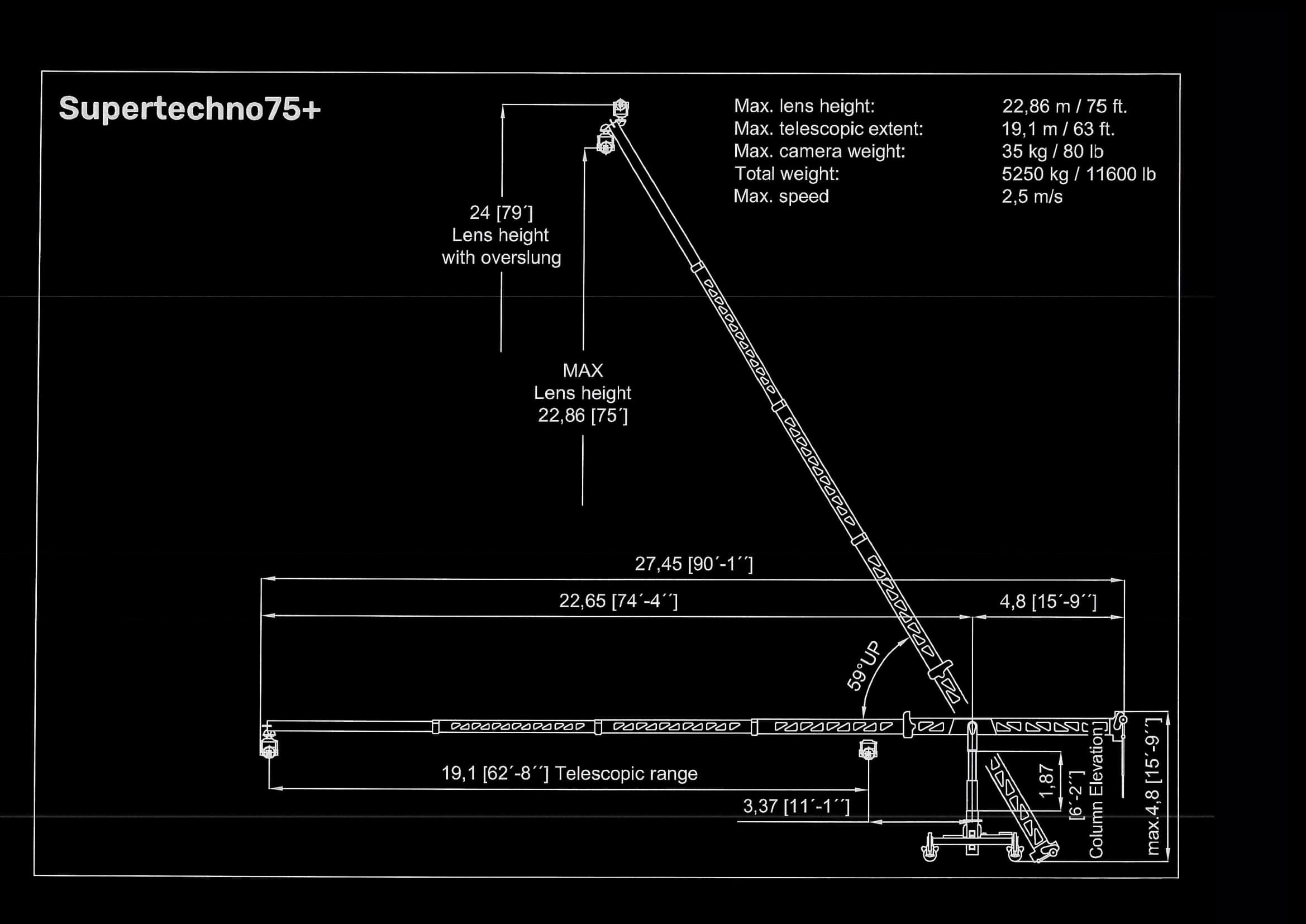

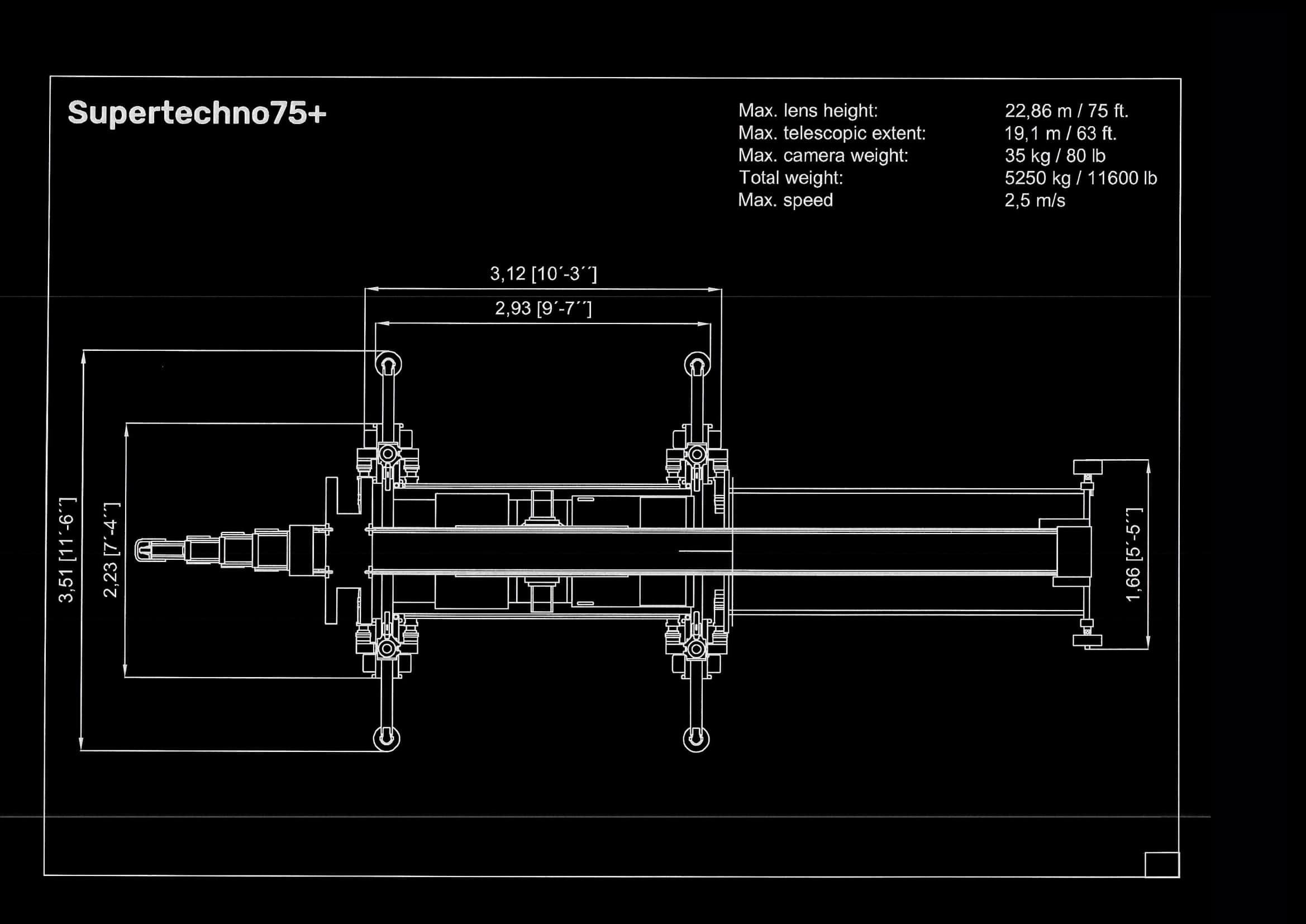

Quick Specs

• Ext. Reach From Post: 73'1"
• Retracted Reach From Post: 11'10"
• Rear Length From Post: 16'
• Max Lens Height Underslung: 75'
• Max Lens Height Overslung: 79'
• Base Width: 7'4"
• Minimum Clearance: 9'6"
• Telescopic Range: 63'
• Max Nose Load / Underslung: 155 lbs
• Max Nose Load / Overslung: 99 lbs
• Max Speed: 7'5" per sec
• Total Weight Incl. Payload & Counterweights: 11,600 lbs
• Empty Crane Weight: 8,488 lbs
• Empty Arm Weight: 3,858 lbs
